Controllers

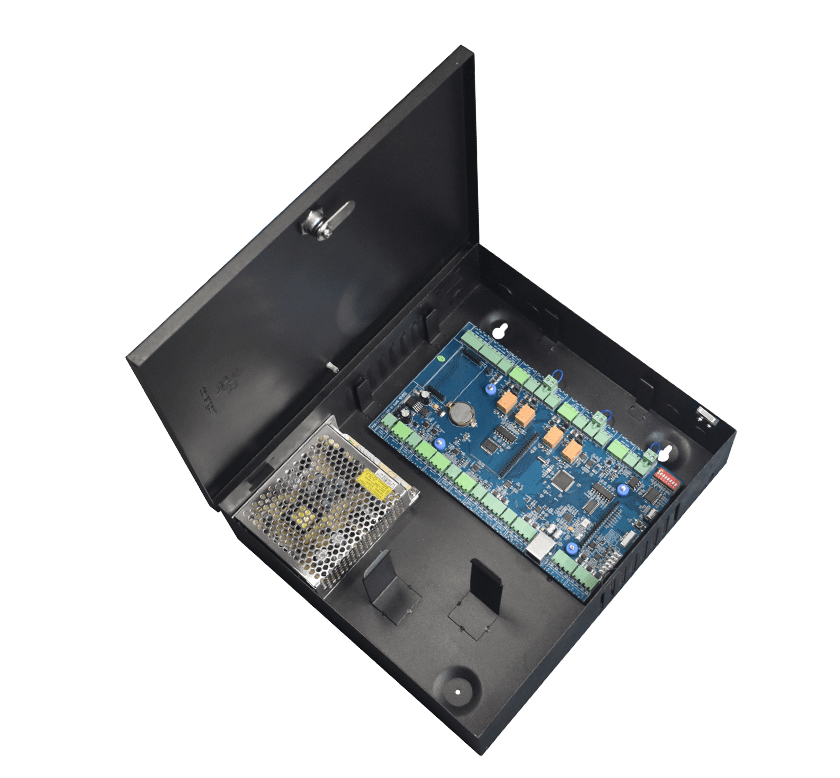

Single Door Controller CU/SD-16

• Capable of storing up to 130,000 card users, 180,000 access records and 8,000 alarm records
• Supports combination of multiple card readers, Multiple communication modes: RS422 and Wiegand readers
• Each door supports 2 card readers
• Supports anti-pass back function
• Supports RS422 and Wiegand

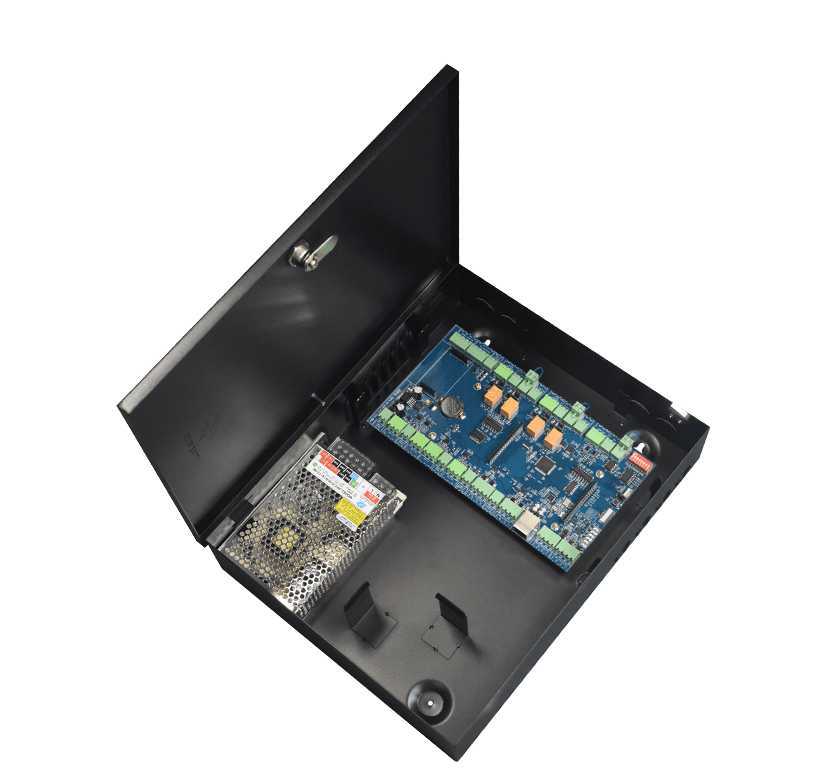

Multi Door Controller CU/MD-16

• Capable of storing up to 130,000 card users, 180,000 access records and 8,000 alarm records
• Supports combination of multiple card readers, Multiple communication modes: RS422 and Wiegand readers
• Each door supports 2 card readers
• Supports anti-pass back function
• Supports RS422 and Wiegand
• Supports TCP/IP connection

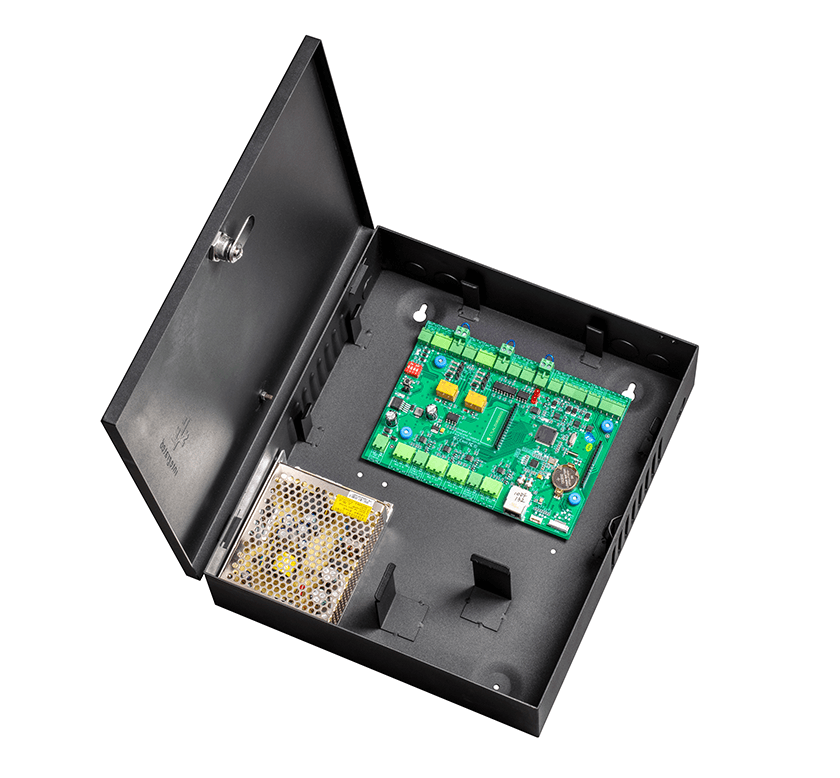

Single Door Controller CU/SD-EA



• Capable of storing data of up to 49,000 card users and 70,000 access records
• Capable of storing data of 8,000 alarm records
• Each door supports two card readers
• Supports anti-pass back function
• Supports RS422 and Wiegand



Multi Door Controller CU/MD-EA



• Capable of storing data of up to 49,000 card users and 70,000 access records
• Capable of storing data of 8,000 alarm records
• Each door supports four card readers*
• Supports anti-pass back function
• Supports RS422 and Wiegand

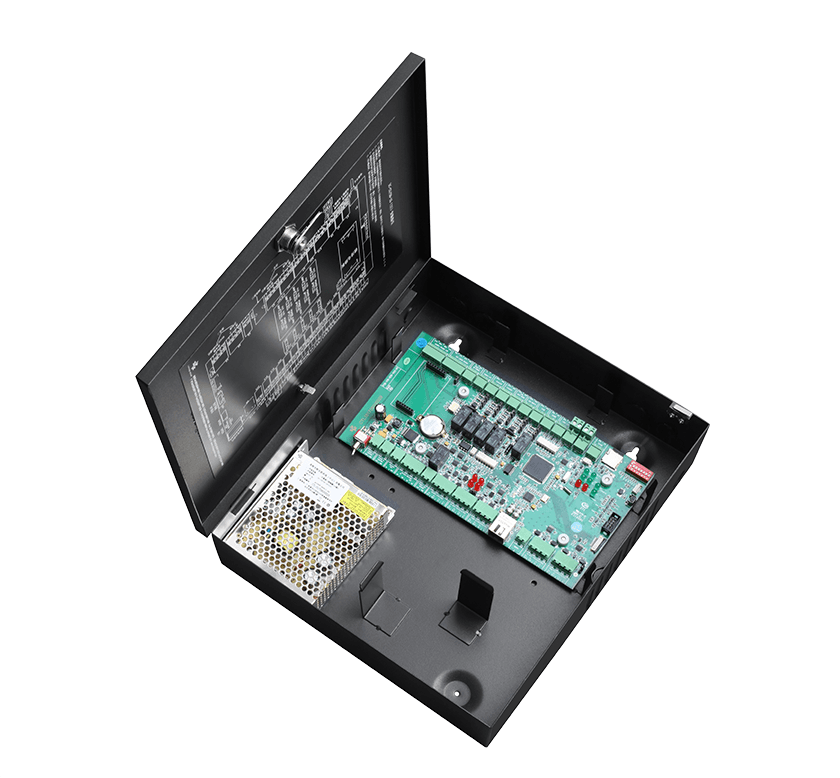

Single Door Controller CU/SD-15

• Capable of storing data and processing records of up to 200,000 card users and up to 1,000,000 access records and 10,000 alarm records
• Online firmware upgrade
• Multiple communication modes: TCP/IP, CAN, RS485 and RS422, automatically detect error
• Work with iPlatform supports TCP/IP transfer to RS422/485
• Supports up to five relay output interfaces

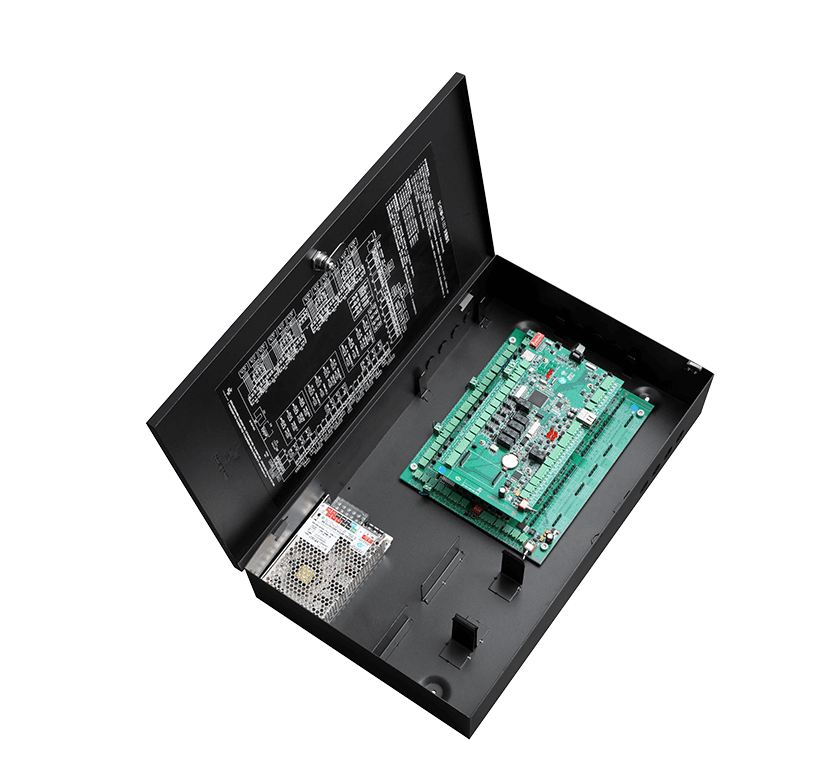

Multi-Door Controller CU/MD-15

• Capable of storing data and processing records of up to 200,000 card users Supports up to 1,000,000 access records and 10,000 alarm records
• Supports up to 5 relay output interfaces
• Supports combination of multiple card readers, Multiple communication modes: RS422 and Wiegand readers
• Compatible with 26bits card readers
• Point-to-point encryption with connected devices and server



Lift Controller LT-16i

• Capable of saving data and access records of up to 60,000 card users
• Supports up to 16 floors, expandable to 80 floors
• Multiple communication modes: RS232, RS422 and RS485
• Can be configured by backend system or master smart card
• Provides 16 input signal interfaces
• Thunder/static electricity protection



E-Lock Controller CU/EL

• Support RS485 connection to reader /device
• Supports up to two readers / devices
• Supports different types of signal strength of controlling and monitoring
• Supports JESS
• Thunder/static electricity protection





Master Controller CU/MC

• Supports up to 32 slave controllers
• Real-time controller monitoring
• Real-time data processing
• Initiative data upload
• Asymmetric key encryption (AES 128) with server side
• Offline data storage
